Name: Roads

Display Field: RoadName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Road segments consisting primarily of road centerlines. Attribute data includes critical fields for use in enterprise applications and GIS workflows. Current data includes public and private roads. Feature class extent includes City of San Marcos, San Marcos Fire Protection District, and a slight buffer defined by the bnd_ClipArea feature class in the Administrative feature dataset. Long-term road map for continuous improvement can greatly improve the value of this feature class for the organization, especially for pavement management and public safety use cases.

Service Item Id: 61633fc4d1044592b01a1a33d86f4c1f

Copyright Text: City of San Marcos, SanGIS

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Supports Datum Transformation: true

Extent:

XMin: 6236802.768396884
YMin: 1965534.1355168074
XMax: 6322645.965148464
YMax: 2035533.7012260556
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: RoadClass
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Freeway
  Label: Freeway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Highway
  Label: Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 0
• Value: Major Road
  Label: Major Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 1
• Value: Minor Road
  Label: Minor Road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [156, 156, 156, 255]
  Width: 0
Transparency: 30
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: true
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• AssetID ( type: esriFieldTypeString, alias: AssetID, length: 255 )
• CRWID ( type: esriFieldTypeString, alias: CRWID, length: 10 )
• SanGISSegID ( type: esriFieldTypeInteger, alias: SanGISSegID )
• SanGISRoadID ( type: esriFieldTypeInteger, alias: RoadID )
• FunctionalClass ( type: esriFieldTypeString, alias: FunctionalClass, length: 100 )
• RoadClass ( type: esriFieldTypeString, alias: RoadClass, length: 20 )
• RoadPreDir ( type: esriFieldTypeString, alias: RoadPreDir, length: 2 )
• RoadName ( type: esriFieldTypeString, alias: RoadName, length: 50 )
• RoadNameType ( type: esriFieldTypeString, alias: RoadNameType, length: 5 )
• RoadSufDir ( type: esriFieldTypeString, alias: RoadSufDir, length: 2 )
• Fullname ( type: esriFieldTypeString, alias: Fullname, length: 100 )
• AlternateFullName ( type: esriFieldTypeString, alias: Alternate Full Name, length: 100 )
• RouteAhead ( type: esriFieldTypeString, alias: RouteAhead, length: 100 )
• RouteBack ( type: esriFieldTypeString, alias: RouteBack, length: 100 )
• LeftLowAddress ( type: esriFieldTypeInteger, alias: LeftLowAddress )
• LeftHighAddress ( type: esriFieldTypeInteger, alias: LeftHighAddress )
• RightLowAddress ( type: esriFieldTypeInteger, alias: RightLowAddress )
• RightHighAddress ( type: esriFieldTypeInteger, alias: RightHighAddress )
• FireDriveable ( type: esriFieldTypeString, alias: FireDriveable, length: 1 )
• LegacyID ( type: esriFieldTypeString, alias: LegacyID, length: 50 )
• VariableSpeed ( type: esriFieldTypeSmallInteger, alias: VariableSpeed )
• NumberOfLanes ( type: esriFieldTypeSmallInteger, alias: NumberOfLanes )
• ROW_Width ( type: esriFieldTypeInteger, alias: ROW_Width )
• OneWay ( type: esriFieldTypeString, alias: OneWay, length: 1 )
• UsageStatus ( type: esriFieldTypeString, alias: UsageStatus, length: 20 )
• IsOneWay ( type: esriFieldTypeString, alias: IsOneWay, length: 3 )
• IsTruckRoute ( type: esriFieldTypeString, alias: IsTruckRoute, length: 4 )
• TruckRouteStatus ( type: esriFieldTypeString, alias: TruckRouteStatus, length: 30 )
• IsEvacuationRoute ( type: esriFieldTypeString, alias: IsEvacuationRoute, length: 4 )
• IsSMOnly ( type: esriFieldTypeString, alias: IsSMOnly, length: 4 )
• IsSMOnlyLake ( type: esriFieldTypeString, alias: IsSMOnlyLake, length: 4 )
• IsSphere ( type: esriFieldTypeString, alias: IsSphere, length: 4 )
• IsSMFPD ( type: esriFieldTypeString, alias: IsSMFPD, length: 4 )
• InFedAidNetwork ( type: esriFieldTypeString, alias: InFedAidNetwork, length: 3 )
• InRegionalArterialSystem ( type: esriFieldTypeString, alias: InRegionalArterialSystem, length: 3 )
• PWSector ( type: esriFieldTypeSmallInteger, alias: PWSector )
• CouncilDistrict ( type: esriFieldTypeSmallInteger, alias: CouncilDistrict )
• IPNum ( type: esriFieldTypeString, alias: IPNum, length: 6 )
• IPShtNum ( type: esriFieldTypeString, alias: IPShtNum, length: 6 )
• IPDetailNum ( type: esriFieldTypeString, alias: IPDetailNum, length: 20 )
• GPNum ( type: esriFieldTypeString, alias: GPNum, length: 6 )
• GPShtNum ( type: esriFieldTypeString, alias: GPShtNum, length: 6 )
• GPDetailNum ( type: esriFieldTypeString, alias: GPDetailNum, length: 20 )
• AsbuiltDate ( type: esriFieldTypeDate, alias: AsbuiltDate, length: 8 )
• AcceptanceDate ( type: esriFieldTypeDate, alias: AcceptanceDate, length: 8 )
• PlanName ( type: esriFieldTypeString, alias: PlanName, length: 80 )
• LaserficheLink ( type: esriFieldTypeString, alias: LaserficheLink, length: 240 )
• LeftMapBook ( type: esriFieldTypeString, alias: LeftMapBook, length: 5 )
• RightMapBook ( type: esriFieldTypeString, alias: RightMapBook, length: 5 )
• LeftHasCurb ( type: esriFieldTypeString, alias: LeftHasCurb, length: 4 )
• RightHasCurb ( type: esriFieldTypeString, alias: RightHasCurb, length: 4 )
• GBAMSLINK ( type: esriFieldTypeInteger, alias: Link to gbaMS )
• INGBAMS ( type: esriFieldTypeSmallInteger, alias: In gbaMS? )
• InLucity ( type: esriFieldTypeSmallInteger, alias: In Lucity? )
• HasMedian ( type: esriFieldTypeString, alias: HasMedian, length: 4 )
• HasSafetyLight ( type: esriFieldTypeString, alias: HasSafetyLight, length: 4 )
• StreetTypology ( type: esriFieldTypeString, alias: StreetTypology, length: 80 )
• AverageDlyTrffc2008 ( type: esriFieldTypeDouble, alias: AverageDlyTrffc2008 )
• AverageDlyTrffc2010 ( type: esriFieldTypeDouble, alias: AverageDlyTrffc2010 )
• AverageDlyTrffc2019 ( type: esriFieldTypeDouble, alias: AverageDlyTraffic2019 )
• RevComments ( type: esriFieldTypeString, alias: RevComments, length: 255 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• OwnedBy ( type: esriFieldTypeSmallInteger, alias: OwnedBy )
• HSUNum ( type: esriFieldTypeDouble, alias: HSUNum )
• LucityLength ( type: esriFieldTypeDouble, alias: LucityLength )
• LucityCreatedUser ( type: esriFieldTypeString, alias: LucityCreatedUser, length: 255 )
• LucityCreatedDate ( type: esriFieldTypeDate, alias: LucityCreatedDate, length: 8 )
• MaintainedBy ( type: esriFieldTypeSmallInteger, alias: MaintainedBy )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

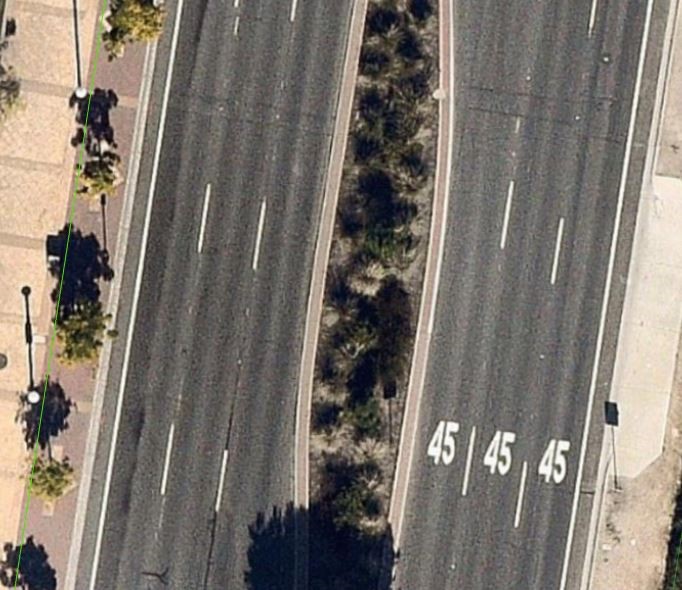

  Iteminfo   Thumbnail   Metadata
